Oil Mold Temperature Controller

●Maximum service temperature 200oC or 300oC
●The high temperature oil heater uses magnetic driven pump, with its inside adopting stainless steel, high voltage explosion protection and not easy to leak
●Equipped with multiple safety measures like power supply reverse protection, pump overload protection, over temperature protection, low liquid level protection etc. When there is trouble, the machine can
automatically detect the abnormal and give an alert
●Adopt full digital segmented temperature control system, can maintain stable mold temperature under any operating conditions, with temperature control accuracy ±0.5°C,
●Equipped with RS485 communication interface, can communicate with the host to achieve centralized monitoring

Oil Mold Temperature Controller

Technical Parameter

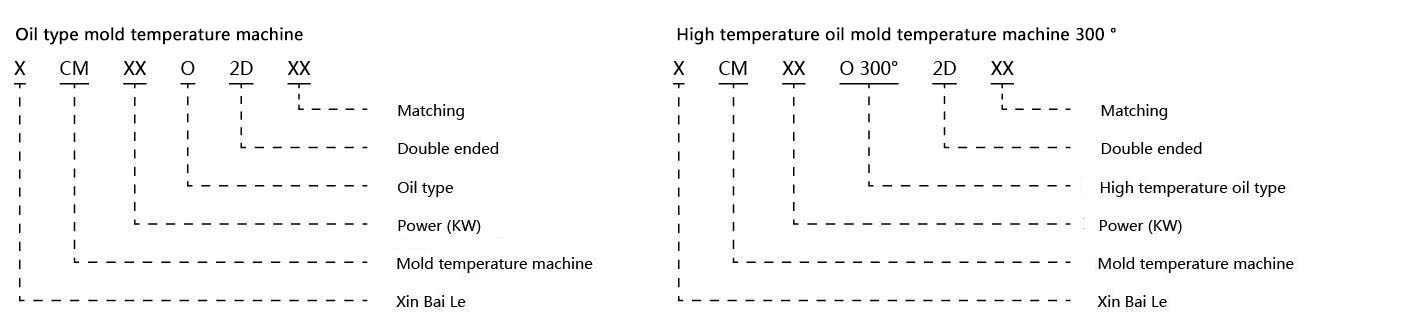

Oil type mold temperature machine

PARAMETERS

Machine type	XCM-6-O	XCM-6-O(2D)	XCM-6-O	XCM-9-O(2D)	XCM-12-O	XCM-12-O(2D)	XCM-24-O XCM-24-O(2D)
Temperature rang(℃)	+30-200℃		+30-200℃		+30-200℃		+30-200℃
Temp accuracy	±1		±1		±1		±1
Source(V/FH/HZ)	380/3/50		380/3/50		380/3/5		380/3/50
Heat transfer media	Heat transfer oil		Heat transfer oil		Heat transfer oil		Heat transfer oil
Cooling mode	Indirect order		Indirect order		Indirect order		Indirect order
Heating power(kw)	6	6+6	9	9+9	12	12+12	12+12	12+12
Pump power(kw)	0.37	0.37+0.37	0.75	0.75+0.75	1.5	1.5+1.5	2.2	3
Pump working flow(L/min)	42		56		112	137	233	233
Pump working pressure(kgf/cm2)	2.2		2.8		2.5	2.7	3	3
Cooling water piping(inch)	1/2		1/2		1/2	1/2	1/2	1/2
Circulating water piping(inch)	3/8		3/8		3/8	3/8	3/8	3/8
Extemal size(mm) H x W x D	870×290×680 980×350×950		870×290×680 980×350×950		1030x350x720	1150×350×1100	1100×470×1080	1100×470×1080

High temperature oil mold temperature machine 300 °

PARAMETERS

Machine type	Max temperature (C)	heating power(kw)	Pump Power (kw)	Pump working flow (L/min)	Pump working pressure(bar)	Number of heating drums	Capacity(L)		Cooling mode	Inlet/outlet dimensions (inch)	Extemal size H×W×D(mm)	Net weight(kg)
							Main tank	Auxiliary fuel tank
XCM-12-OHP-300	300	12	0.55	25.5	4.8	1	6	7	indirect	3/4/3/4	710×390×1020	90
XCM-18-OHP-300	300	18	1	50	5.8	2	9	12		1/1	940×430×1050	184

Ningbo Xin Bai Le Intelligent Machinery Manufacturing Co., Ltd.
